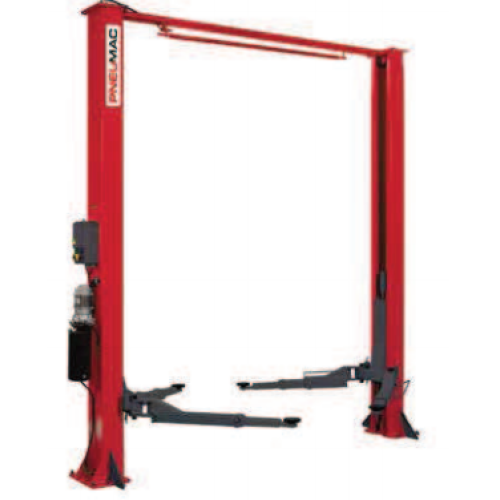

PNEUMAC 2POST LIFT 4 TON HYDR CLEAR FLOOR 220V
Description
Equalization of two steel cables forcing both sliding blocks to move synchronously, effectively and to prevent the vehicle from tilting
• Electro-hydraulic with (2) two independent cylinders
• Cable mode synchronization system from the bottom
• Symmetrical three stages arms
TECHNICAL DATA
Capacity 4000kg
Internal distance between columns 2800mm
Maximum lifting height 1900mm
Minimum pad height 98mm
Power supply 230V 1 ph
Lifting time 50 seconds
Motor power 2,6 kW
Weight (approx) 850kg
Lift Height 3870mm
Product Code:
702050
